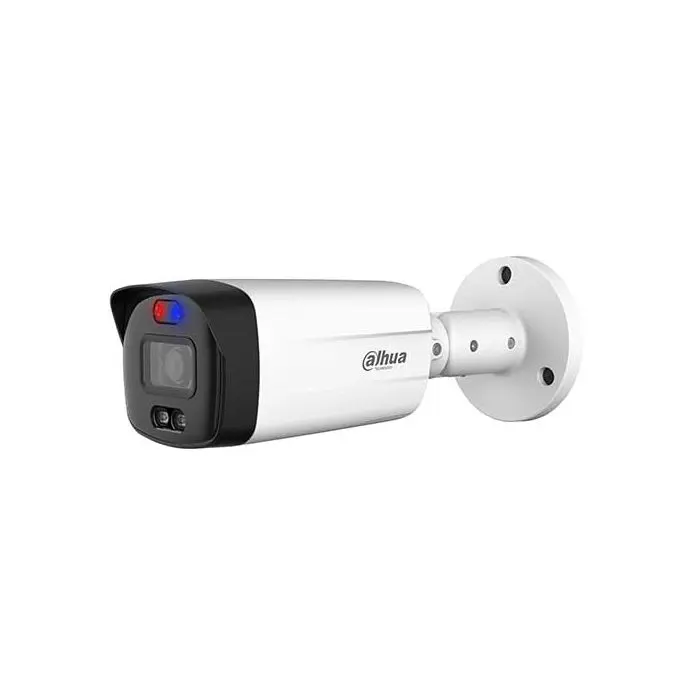

Dahua HAC-ME1809TH-A-PV bullet camera TiOC hdcvi hybrid 4in1 uhd 4K 8Mpx 3.6mm starlight fullcolor active deterrence osd audio IP67

Name: Dahua HAC-ME1809TH-A-PV bullet camera TiOC hdcvi hybrid 4in1 uhd 4K 8Mpx 3.6mm starlight fullcolor active deterrence osd audio IP67
Brand: DAHUA
SKU: HAC-ME1809TH-A-PV-0360B
Price: 85.27 EUR
Availability: InStock

In stock

SKU: HAC-ME1809TH-A-PV-0360B

This product will be shipped within 10 working days

Description

This model supports active deterrence feature which warns off intruders with red blue light and siren even before users are aware of the incident. It is able to alert intruder accurately by SMD Plus or Perimeter Protection of XVR. This camera is an ideal choice for applications which require intrusion protect and video verification, such as courtyards, offices, warehouses, stores.

Active Deterrence
Active deterrence is to warn off intruders actively with red blue light and siren even before users are aware of the incidence. Once an intrusion is detected, the red blue light will flash and the siren will buzzer to alert the intruder. The content of siren is configurable.

Starlight Full-color
The camera adopts F1.2 large aperture lens and 1/2.7" high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera can be able to present 24/7 colored image that provides color details to accurately identify people or objects in low light conditons.

Warm Supplemental lights
With two warm supplemental LED lights, the camera is able to provide a colorful and vivid image even in total darkness. It also provides visible by default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposure of the objects in the image center. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu.

4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, such as video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. Audio input is available for some models of HDCVI cameras.

Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m transmission for 5MP HD video overcoaxial cable, and up to 300 m over UTP cable.*Actual results verified by real-scene testing in Dahua's test laboratory.

Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.The camera is protected against water and dust with IP67, making it suitable for indoor or outdoor environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Main features

1/2.8" Progressive Scan CMOS - 8.0Mpx
Technology HYBRID 4IN1 - (switchable OSD/PFM820) - HDCVI, HDTVI, AHD, CVBS
Resolution: 8mpx (3840×2160); 4mpx (2688 × 1520); 960H (960 × 576/960 × 480).
Video Frame Rate: 15/20/25fps@8MPx, 25/30fps@4MPx.
High Speed, real-time remote transmissions.
Special functions: Active deterrence with red blue light, siren and alarm out interface (only in HDCVI standard).
OSD Functions: Day/Night(ICR), AWB, AGC, BLC, HLC, 2D-DNR, D-WDR digital, Smart Light, Mirror, Privacy Masking (8 Area).
Optical Fixed from 3.6mm - Starlight Fullcolor technology.
Two warm supplemental LED lights (warm white 3000K).
Metal and plastic structure with IP67 Waterproof protection rating.
3 AXIS support with cable passage inside
Audio input with Built-in microphone.
Alarm I/O - 1/0 alarm inputs/outputs.
DC 12V power supply. Lightning Protection System.

Data sheet

Standard:	AHD, HD-CVI, HD-TVI, CVBS
Sensor:	1/2.8 " CMOS
Pixel:	8.0 Mpx
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
Resolution:	3840 × 2160 - 8Mpx (@15/20/25fps), 2560 × 1440 - 4Mpx (@25/30fps),960 x 576 - PAL
Lens:	3.6 mm - F1.6, M12 (Fixed-focal)
View angle:	105° x 89° x 46° (diagonal x horizontal x vertical)
S/N ratio:	> 65 dB
Ilumination:	Starlight Full-Color technology
Min. Illumination	0.005 Lux/F1.6, 0 Lux warm light on
Illumination Distance	40 m (131.2 ft)
Illumination Type	Warm light
Illuminator Number	2pcs LED
Video output:	1 Vpp 75 Ω, AHD, HD-CVI, HD-TVI, CVBS
Alarm inputs / outputs:	1ch alarm out
Audio:	Built-in mic
Main features:	D-WDR - Wide Dynamic Range 2D-DNR - Digital Noise Reduction BLC/HLC - Back Light / High Light Compensation AWB - Auto White Balance Sharpness - sharper image outlines Smart Light - Off/On LEDs Mirror – Off/On Privacy Masking - Off/On (8 Area, Rectangle) Special functions: Active deterrence with red blue light, siren and alarm out interface (only in HDCVI standard).
Active Deterre - Red/Blue Light Warning	Flash: 5 s–30 s; frequency: high/medium/low.
Active Deterre - Sound Warning	Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110dB
OSD menu:	OSD menu available via DAHUA recorder
Power supply:	12 V DC
Power consumption:	Max 7.7W (12V DC, warm light on)
Housing:	Cover: Metal Rear: Plastic Pedestal: Meta
Color:	White
Operation temp:	–40°C to +60°C (–40°F to 140°F); <95% (non-condensation).
Ingress Protection	IP67
Weight:	0.44 kg (0.97 lb)
Dimensions:	240.7 mm × Φ90.7 mm (9.48" × Φ3.57")

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
Connectivity	wire
telecamere_audio	No
Camera Resolution	8MP
Lens	fixed lens
Camera Type	Bullet
Technology	Hybrid
PoC	Not
Tecnologia colore	Full color
