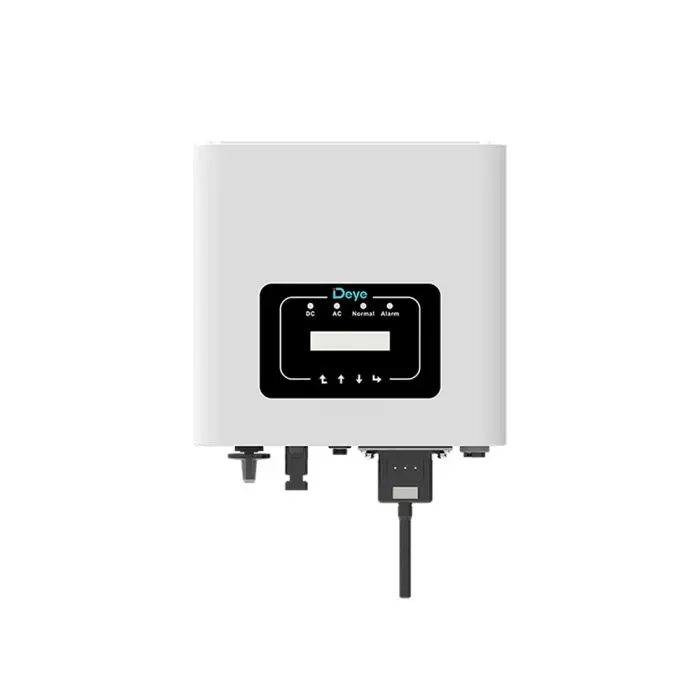

DEYE single-phase 3kW string inverter ongrid WIFI 1 MPPT CEI-021 SUN-3K-G04P1-EU-AM1 - 11957

Name: DEYE single-phase 3kW string inverter ongrid WIFI 1 MPPT CEI-021 SUN-3K-G04P1-EU-AM1 - 11957
Brand: V-TAC
SKU: 11957
Price: 269 EUR
Availability: InStock
Rating: 80 (1 reviews)

(1)

In stock

SKU: 11957

qty: 7

Description

The DEYE single-phase inverter, imported by V-TAC with the SKU code 11957 and the model SUN-3K-G04P1-EU-AM1, represents an ideal solution for home photovoltaic systems. Thanks to its simple but elegant design, it significantly reduces installation times and costs.

Equipped with an LCD display and intuitive buttons, it allows you to quickly set the configurations necessary to start the inverter and put it into production immediately. With a single MPPT, it optimizes the efficiency of the photovoltaic system to which it is connected.

The DEYE 3 kW single-phase inverter can be shut down immediately remotely in case of emergency, thanks to its intelligent monitoring platform with included wifi dongle. Furthermore, the ability to set the parameters and update the firmware remotely further simplifies the management and maintenance of the photovoltaic system.

Data sheet

Attribute Value

Maximum PV input power (kW)	3.9
Starting voltage (V)	80
MPPT voltage range (V)	70-500
Nominal PV input voltage (V)	360
Maximum input short circuit current	30
Maximum operating PV input current (A)	20
Number of MPP Tracers/Number of Strings per MPP Tracer	1/1
Nominal AC active output power (kW)	3
Maximum apparent AC output power (kVA)	3.3
Rated AC output current (A)	13.7/13.1
Maximum AC output current (A)	15/14.4
Rated Output Voltage/Range (V)	220/230 0.85Un-1.1Un
Nominal network output frequency/range (Hz)	50Hz/45Hz-55Hz
Total harmonic distortion THDi	<3%
DC injection current	<0.5%ln
Efficiency
- Maximum efficiency	97.3%
- Euro efficiency	96.9%
- MPPT efficiency	>99%
Equipment protection
- DC reverse polarity protection	Yes
- AC output overcurrent protection	Yes
- AC output overvoltage protection	Yes
- AC output short circuit protection	Yes
- Thermal protection	Yes
- Monitoring of DC terminal insulation impedance	Yes
- Monitoring of DC components	Yes
- Earth fault current monitoring	Yes
- Monitoring of the electricity grid	Yes
- Island protection monitoring	Yes
- Ground fault detection	Yes
- DC input switch	Yes
- Protection against voltage drop due to overvoltage	Yes
- Residual current detection (RCD)	Yes
Overvoltage protection level	Type II(DC), Type II(AC)
Interface
- Communication interface	RS485/RS232
General data
- Operating temperature range (°C)	-25 to +65℃, Derating >45℃
- Permissible ambient humidity	0~100%
- Allowed altitude (m)	2000m
- Noise (dB)	≤ 35 dB(A)
- Degree of protection (IP)	IP 65
- Inverter topology	Not isolated
- Overvoltage category	OVC II(DC), OVC III(AC)
- Cabinet dimensions (WxHxD mm)	280mm 310mm 184mm (Excluding connectors and supports)
- Weight kg]	6.35
- Warranty [years]	5 years
- Type of cooling	Natural cooling
- Network regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE-AR-N 4105
- EMC/Standard safety	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

More Information

SKU Padre	SUN-3K-G04P1-EU-AM1
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	10 years warranty
Colore	White
Waterproof	IP65
Power	3kW
Communication	Wi-Fi / Bluetooth, Ethernet
Inverter Type	On-grid
Current	Single phase
