Box 1 PZ Shipping 24/48H

Hikvision DS-KIS604-P(C) IP Video Intercom Kit – 1 Button, 7″ Monitor, WiFi, PoE, Mifare Reader, Video Intercom

Name: Hikvision DS-KIS604-P(C) IP Video Intercom Kit – 1 Button, 7″ Monitor, WiFi, PoE, Mifare Reader, Video Intercom
Brand: HIKVISION
SKU: DS-KIS604-P(C)
Price: 232.4 EUR
Availability: InStock

In stock

SKU: DS-KIS604-P(C)

qty: 14

Description

The Hikvision DS-KIS604-P(C) Kit is a complete IP video intercom solution for homes and villas, combining elegant design and advanced features. It includes an outdoor panel with a 1080p camera, a wide viewing angle (124° horizontal, 75° vertical), IR illumination for night vision, and IP65/IK08 resistance.

The keypad integrates a Mifare card reader , which allows secure opening via badge/contactless card as well as from the monitor and app.

The 7″ indoor monitor (DS-KH6320-WTE1) is a capacitive touchscreen, supports WiFi and PoE connection, and allows two-way communication, TF card recording and management via Hik-Connect mobile app.

Thanks to PoE/12V power supply and remote support, the kit offers convenience, security and reliability in any residential context.

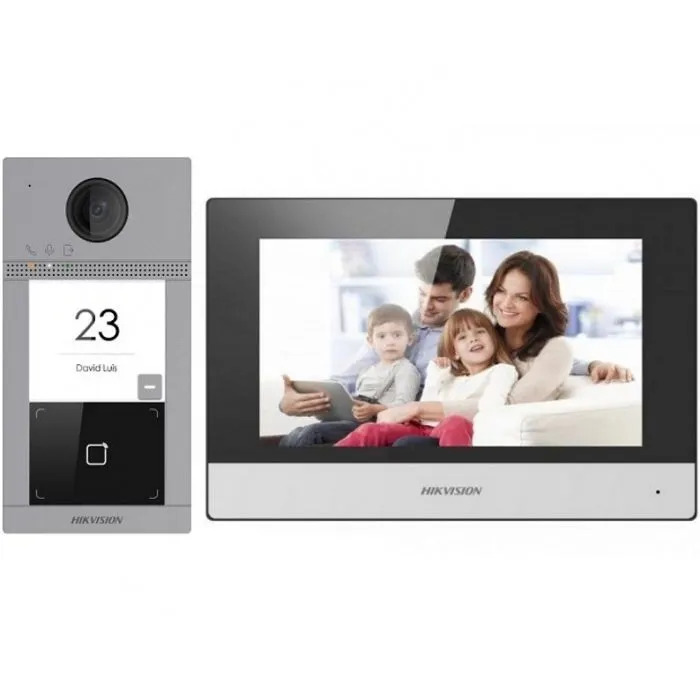

The kit includes

1 × DS-KV8113-WME1(C) – External keypad with 1080p camera and Mifare reader
1 × DS-KH6320-WTE1 – Internal 7″ touchscreen monitor
1 × PSU Power Supplies
1 × 16GB TF Card

Data sheet

Protocol / Network	TCP/IP, RTSP, WiFi 802.11 b/g/n
External video resolution	1080p (1920×1080)
Viewing angle	124° (horiz.) × 75° (vert.)
Lighting	IR LEDs for night vision
Integrated reader	Mifare (RFID card)
External protection	IP65 / IK08
Internal monitor	7″ TFT, capacitive touchscreen
Diet	PoE (IEEE 802.3af) or 12 V DC
Consumption	< 10 W (external) / ≤ 6 W (internal)
Memory	TF card included (16GB)
External dimensions	174 × 91 × 29 mm
Internal dimensions	200 × 140 × 15.1 mm
External weight	≈ 380 g
Video standards	H.264, H.265, MJPEG
