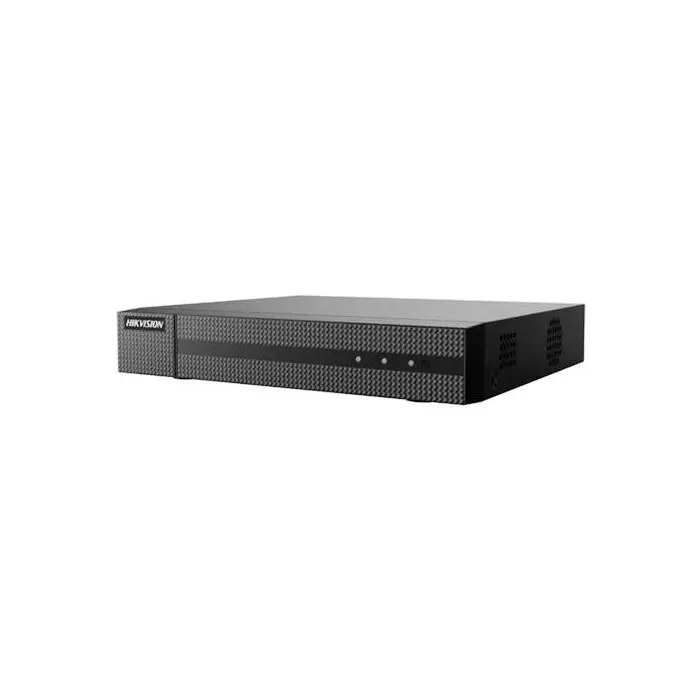

DVR Hikvision HWD-5116MH-G4 xvr 5in1 TVI/AHD/CVI/CVBS+IP turbo hd 16ch@1080N p2p cloud Hiwatch series

Name: DVR Hikvision HWD-5116MH-G4 xvr 5in1 TVI/AHD/CVI/CVBS+IP turbo hd 16ch@1080N p2p cloud Hiwatch series
Brand: HIKVISION
SKU: HWD-5116MH-G4
Price: 80.05 EUR
Availability: InStock

In stock

SKU: HWD-5116MH-G4

qty: 6

Description

Analog video recorder sku. HWD-5116MH-G4 Hikvision Hiwatch series turbo HD 1080N 16 channels with 5IN1 hybrid technology multiple CCTV standard management: analogue CVBS/HDCVI/HDTVI/AHD + IP@960p. Full HD resolution recording at 1080N 16CH@25fps + 2 IP Cameras up to 960p. Thanks to the hybrid technology of the video recorder it is possible to update all old video surveillance systems, giving the possibility of installing high resolution cameras using the traditional micro coaxial cabling used for the installation of analogue CVBS cameras.

The menu is designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings. The DVR offers connectivity from any device including applications for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional headquarters, from museums to airports, from villas to small condominium contexts etc...

Specifications

Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@960p, Onvif Standard
Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
Recording (REC & Live) on all channels in 1080N 16CH@25fps
H.264+/H.264 dual-stream video compression.
Simultaneous HDMI/VGA video output.
Supports 1 SATA HDD up to 6TB, 2 USB2.0
Multiple network monitoring: Web viewer, CMS, Smartphone through iVMS-4200, Hik-Connect and iVMS-5200 applications
Easy P2P QR scan configuration with dedicated Hikvision Cloud service.
Multilingual menu, including Italian.

Data sheet

Standard:	AHD, HD-CVI, HD-TVI, PAL
Video Inputs:	16 BNC units - HD-TVI / AHD / HD-CVI / CVBS
Video Outputs:	1 HDMI unit 1 VGA drive
Audio Inputs:	1 unit CINCH
Audio Outputs:	1 unit CINCH
Image compression method:	H.264 / H.264+
Number of compression levels:	6
Recorded image resolutions:	960 x 1080 - 1080N 1280 x 960 – 960p (IP) 1280 x 720 - 720p 960 x 576 - 960H 704 x 576 - 4CIF 640 x 480 - VGA
Maximum overall recording speed:	400 fps @ 960 x 1080 px, 400 fps @ 1280 x 720 px, 400 fps @ 960 x 576 px 400 fps @ 704 x 576 px 400 fps @ 640 x 480 px
Recording speed adjustment:	1 ... 25 fps @ 960 x 1080 px 1 ... 25 fps @ 1280 x 720 px 1 ... 25 fps @ 960 x 576 1 ... 25 fps @ 704 x 576 1 ... 25 fps @ 640 x 480 px to be assigned to each channel
Operation Mode:	16 x 1080N max. 25 fps + 2 x IP 16 x 720p max. 25 fps + 2 x IP All modes allow any combination of AHD-H, HD-CVI, HD-TVI, CVBS cameras
Recording Mode:	Manual, motion detection, programming
Supported Hard Drives:	1 x 6TB SATA
Storing the backup copy on external devices:	Storage on USB drives (pendrives)
Searching and playing recordings:	Search for recordings on the Timeline or file list. Playback: forward, fast mode, slow mode. Playback from a max. of 8 cameras simultaneously
Network interface:	1 x RJ-45 - 10/100 Base-T
Network Features:	Customer software and IE browser: live preview, playback and recording backup, partial configuration of recorder parameters
Bit rate:	32 ... 4096 kbps
Network protocols:	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Mobile access:	Port: 8000 or cloud access Android: Free iVMS-4500 or Hik-Connect application iOS (iPhone): Free iVMS-4500 or Hik-Connect application
Default Administrator Username/Default Password:	admin / -
Default IP address:	DHCP or 192.168.1.64
Browser access ports:	80
Access ports via PC application:	Port: 8000 or access via cloud - iVMS-4200 application
Access ports via mobile application:	8000
ONVIF port:	80
Multi-operation:	Pentaplex
Alarm inputs / outputs:	No
PTZ Control:	Hikvision HD-TVI coax compatible control
Motion detection:	Division of the screen into zones: 22 x 18 detection fields
Mouse Support:	Yes
IR remote control supplied:	No
Diet:	12 V DC / 2 A (power supply supplied)
Color:	Black
Case:	Metal
Weight:	1.20kg
Dimensions:	260 x 222 x 45mm
Supported languages:	English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Polish, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian
Manufacturer / Brand:	HIKVISION

More Information

Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	2 years warranty
SSD	No
Bit rate	40 Mbps
Channel Recorders	16
Technology	Hybrid
Recorders Resolution	1080 n
PoC	Not
