INVT Three-phase Network Inverter (On-Grid) 30kW iMars XG30KTR Triple MPPT CEI 0-21 IP66 - 11507

Name: INVT Three-phase Network Inverter (On-Grid) 30kW iMars XG30KTR Triple MPPT CEI 0-21 IP66 - 11507
Brand: V-TAC
SKU: 11507
Price: 2065 EUR
Availability: OutOfStock

Out of stock

SKU: 11507

Go to the latest version of this product

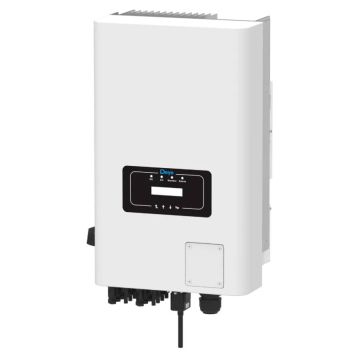

V-TAC DEYE SUN-30K-G04 Three-phase On-Grid Network Inverter 30kW photovoltaic system LCD screen and Integrated Smart Meter including CT and WiFi 5 Year Warranty IP65 - 11812

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

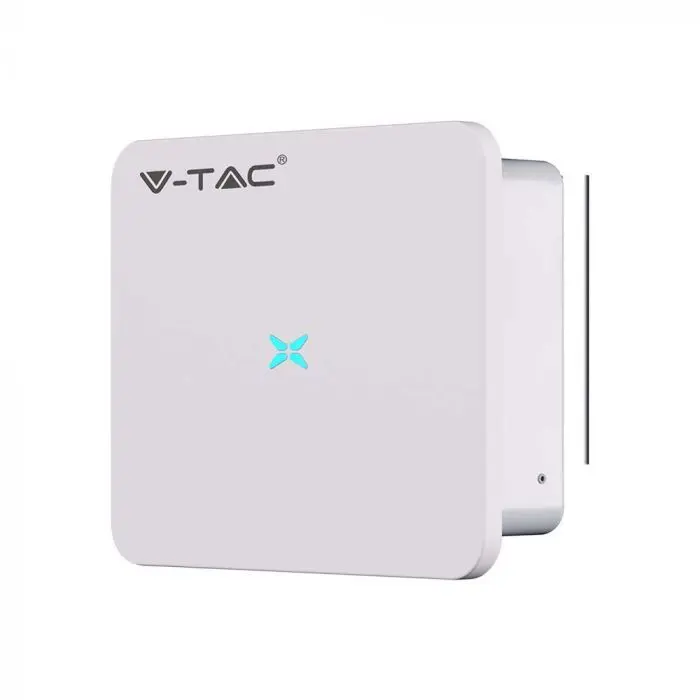

Grid Inverter (On-Grid) V-TAC SKU 11507 VT-6630305 - Three-phase 30kW Triple MPPT

The V-TAC SKU 11507 Grid Inverter is an electronic device designed to convert the direct current supplied by photovoltaic solar panels into three-phase alternating current, suitable for consumption in condominiums, commercial or industrial premises.

Characteristics:

Power: 30 kW
Triple MPPT: Guarantees greater flexibility and optimal performance in different solar radiation conditions.
LED indicator: Signals the operating status of the inverter (on, off or error).
Heat dissipation: Takes place via radiators, ensuring silent operation.
Charge/discharge protection: Ensures the safety of the system.
Degree of protection: IP65, can also be used for outdoor use, resistant to prolonged rain.
Warranty: 10 years.
Certification: Compliance with the CEI 0-21 standard.

Compatibility with Storage Batteries: It is NOT compatible with storage batteries, as it is only designed for operation when connected to the electricity mains.

Suitable for Home and Commercial Use: XG 30-40KTR three-phase solar inverters are suitable for medium power systems for homes and commercial stations.

Intelligent Data Monitoring Platform: The XG 30-40KTR solar inverter is equipped with an intelligent data monitoring platform that brings an innovative energy consumption experience to users.

Efficient: Maximize revenue through efficient solar energy management.

Intelligent: Equipped with intelligent functions to simplify the management and monitoring of the solar system.

Simple Maintenance: Easy to install and maintain.

Reliable: Guarantees reliability and peace of mind in operation.

Advanced Technical Features:

3-Tracker MPP: High single circuit tracking accuracy and fast dynamic response.
DC Input Oversizing by 160%: Maximizes efficiency and power production.
Maximum efficiency of 98.6%: Optimization of the use of solar energy.
Wide MPPT Voltage Range: From 200V to 1000V, to maximize solar energy collection.
Compatible with High Power Modules: Adaptable to high power photovoltaic modules.
Intelligent IV Curve Diagnosis Function: Precise and automatic fault location in photovoltaic modules.
Intelligent Fault Detection: Real-time recording of AC side voltage and current waveforms for quick fault location.
RS485 support (WiFi/GPRS/Ethernet optional): Remote monitoring and management via PC or mobile devices.
IP66 Protection Rating: Suitable for outdoor installation.
SPD Type II DC & AC: Protection against damage caused by lightning.
AFCI function (Optional): Immediate stop of operation in case of electric arc detection.

Data sheet

Property XG30KTR

Inputs (DC)
Maximum Input Power	48 kW
Maximum Input Voltage	1100V
Starting Voltage	250V
Nominal Input Voltage	600V
Full Load MPP Voltage Range	500V ~ 800V
MPP Voltage Range	200V~1000V
Number of MPP Trackers	3
Number of Strings for MPP Tracker	2
Maximum Current for MPP Tracker	26A
Maximum Short Circuit Current for MPP Tracker	32A
Output (AC)
Maximum Output Current	48.3A
Rated Output Power	30 kW
Maximum Output Power	33.3 kVA
Nominal Network Frequency	50Hz / 60Hz
Nominal Mains Voltage	230Vac / 400Vac, 3L / N / PE
Power Factor	>0.99 (0.8 leading~0.8 lagging)
THDi	<3% (Nominal Power)
Efficiency
Maximum efficiency	98.6%
European efficiency	98.5%
MPPT efficiency	99.9%
Protection
DC Reverse Polarity Protection	Yes
Shatterproof protection	Yes
AC Short Circuit Protection	Yes
Residual Current Monitoring Unit	Yes
Insulation Resistance Monitoring	Yes
Monitoring of Earth Fault Currents	Yes
Network Monitoring	Yes
PV String Monitoring	Yes
Type II Overvoltage Protection	Yes
AFCI Protection (Optional)	Optional
Communication
Display	LCD / LED+APP
Communication	Standard: RS485
	Optional: WiFi / GPRS / Ethernet
Standard Compliance
Certification	See Standard List
General data
Dimensions (W x H x D)	600 x 430 x 230 mm
Weight	30kg
Operating Temperature Range	-30°C ~ +60°C
Cooling Method	Intelligent Cooling
Degree of Protection	IP66
Maximum Operating Altitude	4000m
Relative humidity	0~100%
Topology	Without Transformer
Nighttime Energy Consumption	<1W

More Information

SKU Padre	VT-6630305
Ean	3800157693219
Shipping	Shipping 24/48H
Warranty	5 years warranty
Colore	Gray
Waterproof	IP66
Power	30kW
Communication	RS485(standard), Wi-Fi / Bluetooth
Inverter Type	On-grid
Current	Three-phase
