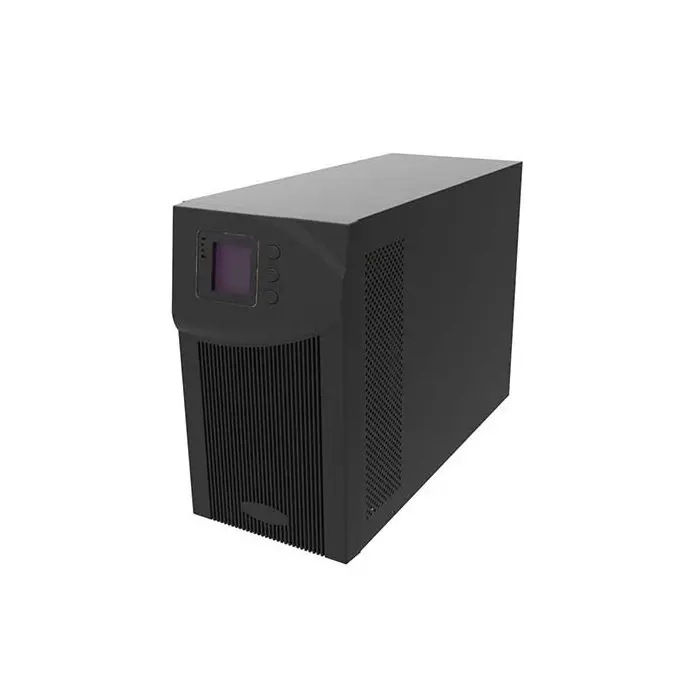

Line-Interactive UPS 3000VA/2700W with LCD Display protecting SNMP/RS232/USB/RJ45 communication ports

Name: Line-Interactive UPS 3000VA/2700W with LCD Display protecting SNMP/RS232/USB/RJ45 communication ports
SKU: SAM-4636
Price: 429.76 EUR
Availability: OutOfStock

Out of stock

SKU: SAM-4636

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

Line-Interactive UPS 3000VA/2700W is able to protect every electric or electronic system in which could be a fast change of the supply-voltage. Avoid these problems means increasing the average life of all connected devices and can save your work in peace in case of power line failure. UPS is easy to install and use.

Main features

3-tier smart charging modes
Overload protection
True online double conversion
LCD screen with multifunction parameter
Configurations and operational status
Smart fan speed control
Cold start function
ECO / Configurable standby mode
Schuko connection
SNMP, RS232, USB, RJ45 communication ports.

Data sheet

Nominal input voltage: 200/208/220/230 / 240V AC
Input voltage range: 110V ~ 160V AC / 125V ~ 175V AC
Input frequency: 40/70 Hz
Capacity: 2700W
Output frequency: 40/70 Hz
Input power factor: 0.99 @ 100% load (nominal input voltage)
Supports generator input
Output voltage: 200/208/220/230 / 240V AC
Output power factor: 0.9
Output voltage regulation: ± 1%
Output frequency: 47/53 Hz or 57/63 Hz
Battery mode output frequency: 50/60 Hz (± 0.1Hz)
Waveform: Pure Sine Wave
AC / Battery mode transfer time: Zero
Inverter / Bypass Transfer Time: 4ms
Battery: Supports 6/8 12V / 9Ah batteries
Recharge time of 4 hours at 90% capacity
Audible warnings of battery mode, low battery, overload, battery replacement and failure
Overload protection
SNMP, RS232, USB, RJ45 communication ports
Storage temperature: -25 ° C ~ + 55 ° C
Operating temperature: 0 ° C ~ + 40 ° C
Humidity: 20% ~ 90% non-condensing
Dimensions: 191 (W) x 337 (H) x 460mm
Weight: 27.6 kg
Standards: IEC / EN62040-1, IEC / EN60950-1
