Rack switching adapter 12V DC 10A 120W 18x560mA CCTV

Name: Rack switching adapter 12V DC 10A 120W 18x560mA CCTV
SKU: 9012V/10A/PA18
Price: 26.21 EUR
Availability: OutOfStock

(1)

Out of stock

SKU: 9012V/10A/PA18

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

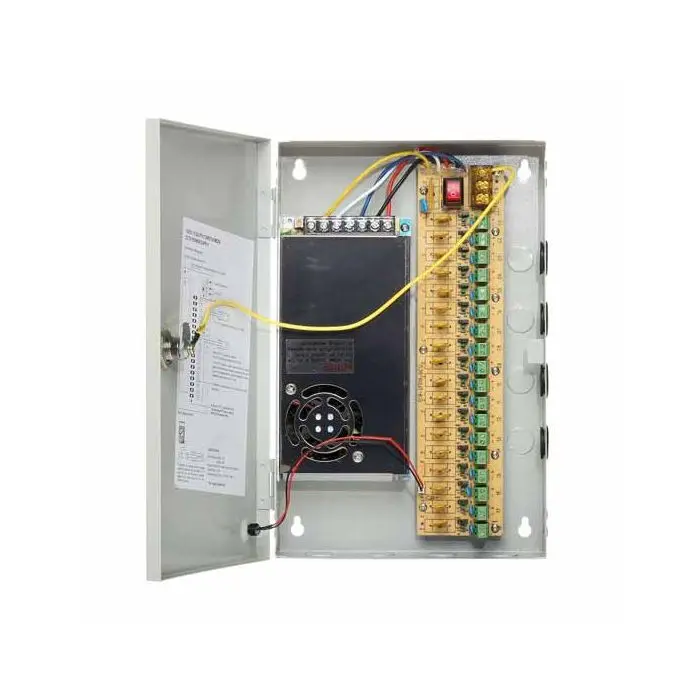

Rack switching adapter 12V DC 10A 120W 18x560mA CCTV Mod. 9012V/10A/PA18 Power adapter is equipped with aesthetic, solidly made metal casing box. Adapter operation is indicated by LED placed on the casing box. The power supply adapter is stabilized and allows to connect up to 18 devices with max. current consumption of 560mA for each output. Each power line is protected by a polymer fuse and has a LED indicator informing about output voltage presence. The adapter has the power off jumpers for each output. 9012V/10A/PA18 is a power supply that can be used for video surveillance systems, LED systems, etc. where it is essential to a centralized power supply, stabilized and protected. Attention! If the power adaptor is using for continuous work (24H) the rated current of the adaptor should be less than 80% of the maximal current. Please pay attention for proper cooling conditions of the power adaptor during work! Caution! The power supply adapter does not have a built-in current limiting.

Data sheet

Technical features

Adapter type:	Switching
Output voltage:	12 V DC
Output voltage adjustment:	11 ... 13 V
Max. output current (total):	10 A
LED indication:	Yes
Input voltage:	230 V AC
Power:	120 W (momentary 145W)
Number of outputs:	18
Connector type:	Cable terminals
Housing type:	Metal
