Rack switching adapter 12V DC 21A 252W 18x1.1A CCTV

Name: Rack switching adapter 12V DC 21A 252W 18x1.1A CCTV
SKU: 9012V/21A/PA18
Price: 27.61 EUR
Availability: OutOfStock

(1)

Out of stock

SKU: 9012V/21A/PA18

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description

Rack switching adapter 12V DC 10A 252W 18x1.1A CCTV Mod. 9012V/21A/PA18

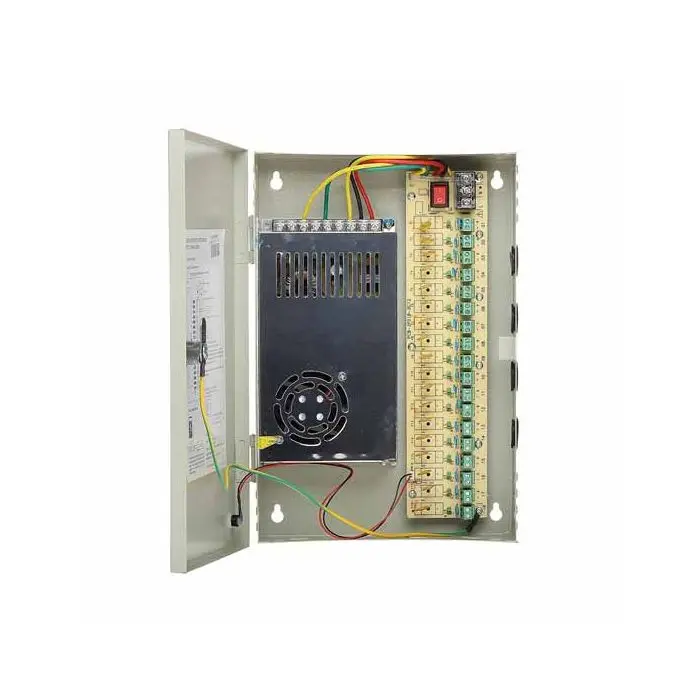

Power adapter is equipped with aesthetic, solidly made metal casing box. Adapter operation is indicated by LED placed on the casing box. The power supply adapter is stabilized and allows to connect up to 18 devices with max. current consumption of 1.1A for each output. Each power line is protected by a polymer fuse and has a LED indicator informing about output voltage presence. The adapter has the power off jumpers for each output.

9012V/21A/PA18 is a power supply that can be used for video surveillance systems, LED systems, etc. where it is essential to a centralized power supply, stabilized and protected. Attention! If the power adaptor is using for continuous work (24H) the rated current of the adaptor should be less than 80% of the maximal current. Please pay attention for proper cooling conditions of the power adaptor during work! Caution! The power supply adapter does not have a built-in current limiting.

Data sheet

Adapter type: Switching Output voltage: 12 V DC Output voltage adjustment: 11 ... 13 V LED indication: Yes Max. output current (total): 21 A Max. output current for single output: 1.1 A Input voltage: 230 V AC Power: 252 W Number of outputs: 18 Connector type: Cable terminals Housing type: Metal, wall-mounted Key closed: Yes Weight: 1.882 kg Dimensions: 212 x 314 x 65 mm
