UNIKS M12 – Compact Digital Multimeter TRMS 600 V/10 A, Cat III

In stock

SKU: M12

qty: 4

Description

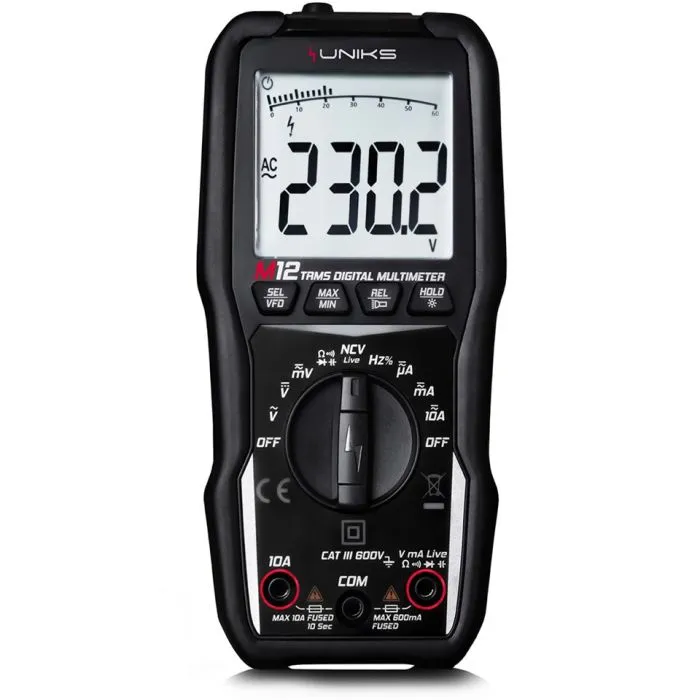

The UNIKS M12 multimeter is a portable professional instrument that combines practicality and precision. It features an auto-ranging AC/DC measurement range up to 600 V and 10 A, with a Category III certified TRMS curve for safety in electrical and electronic fields.

It features a VFD filter for accurate measurements under inverters, a backlit LCD display with an analog bargraph for quick readings, a NCV function for non-contact voltage detection, and an LED flashlight for dark environments. Ideal for experienced electricians and technicians.

Data sheet

Model	M12
Autorange & TRMS	Yes (V/A up to 600 V/10 A AC/DC)
VFD filter	Yes (cuts frequencies >1 kHz)
Display	LCD 6000 count + bar-graph, LED backlight
Functions	V/A/DC/AC, resistance, capacitance, frequency, duty, continuity, diode, NCV
Safety category	CAT III 600 V (IEC 61010‑1)
Current flow rate	10 A, 600 mA, mA/µA
Frequency	10 Hz–1 MHz
Capacity	up to 100 mF
Batterie	2×AAA
Dimensions / Weight	166×78×64 mm – ≈ 268 g
Operating temperature	0–40 °C, RH < 80%
Regulations	EN 61326, EN 61010‑1/2‑032/2‑033 (EMC & LVD)
Warranty	1 year
