MODELLO |

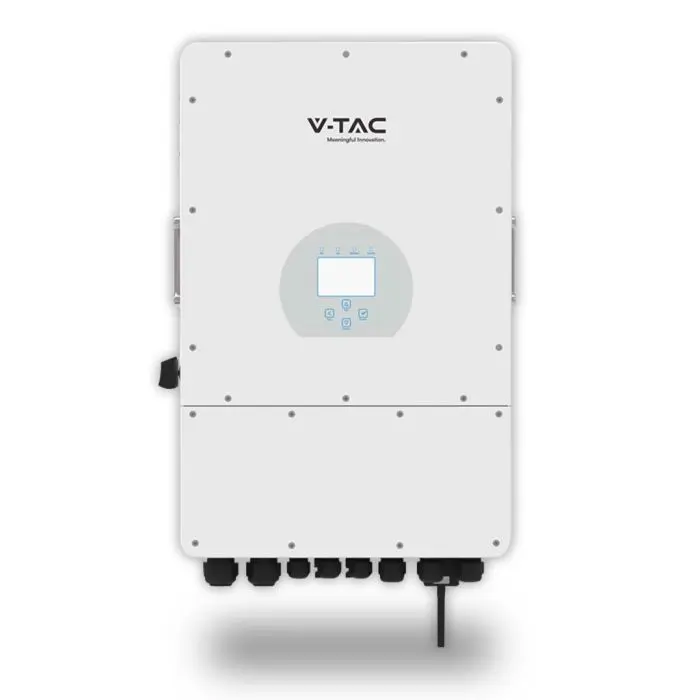

sku 11543 - SUN-12K-SG04LP3-EU |
Battery Input Data |
|
Battery Type |
Lead-acid or Li-lon |
Battery Voltage Range (V) |
|
Max. Charging Current (A) |
240 |
Max. Discharging Current (A) |
240 |
External Temperature Sensor |
SI |
Charging Curve |
3 Stages / Equalization |
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
Input |
|
Max. Input Power |
15600W |
Max. Input Voltage |
550V |
Start Voltage / Min. Operating Voltage |
160V |
MPPT Voltage Range |
200V-650V |
Full Load DC Voltage Range (V |
350-650 |
PV Input Current (A |
26+13 |
Max. PV I (A) |
34+17 |
No.of MPP Trackers |
2 |
No.of Strings per MPP Tracker |
2+1 |
Output |
|
Rated AC Output and UPS Power (W) |
12000 |
AC Output Rated Current (A) |
18.2/17.4 |
Max. AC Current (A) |
27.3/26.1 |
Max. AC Output Power (W) |
13200W |
Max. Continuous AC Passthrough (A) |
45 |
Peak Power (off grid) |
2 time of rated power, 10 S |
Output Frequency and Voltage |
R50/60Hz; 3L/N/PE 220/380, 230/400Vac |
Rated Grid Voltage |
230V, L+N+PE |
Fattore di potenza |
0.8 leading to 0.8 lagging |
Grid Type |
Three Phase |
DC injection current (mA) |
THD<3% (Linear load<1.5%) |
Efficienza |
|
Efficienza Max |
97.6% |
Efficienza Max (Europea) |
97.0% |
Efficienza MPPT |
99.9% |
Protezione |
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection |
Comunicazione |
|
Display |
LCD (Standard) |
Cooling: |
Smart cooling |
System Language |
English / Chinese / German / Dutch |
Comunicazione |
Standard: RS485; CAN |
Conformità agli standard
|
|
Standard di connessione alla rete |
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
Sicurezza / EMC |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Dati Generali |
|
Dimensioni |
422W x 699.3H x279D |
Peso |
33.6 KG |
Temperatura operativa |
'-25º~+60º (Derating above 45º) |
Grado di protezione |
IP65 |
Rumorosità |
<30dB |
Altitudine massima operativa |
3000mt |
Umidità relativa |
0-95% |
Garanzia |
10 ANNI |
